ASUS RS501A-E12-RS12U 1U Rackserver
- Form Factor 1U Rackmount
- Supported CPUs AMD EPYC 9004
- AMD EPYC 9005
- CPU Socket 1
-
Max Supported Memory
3 TB DDR5 ECC Supported
-
Power Supply
1600 W Titanium Redundant
Key Applications
- General purpose enterprise and data center workloads
- AI Inference and High-Performance Compute (HPC)
- Virtualization platforms
- Storage-centric and database servers
- Cloud infrastructure
Key Features

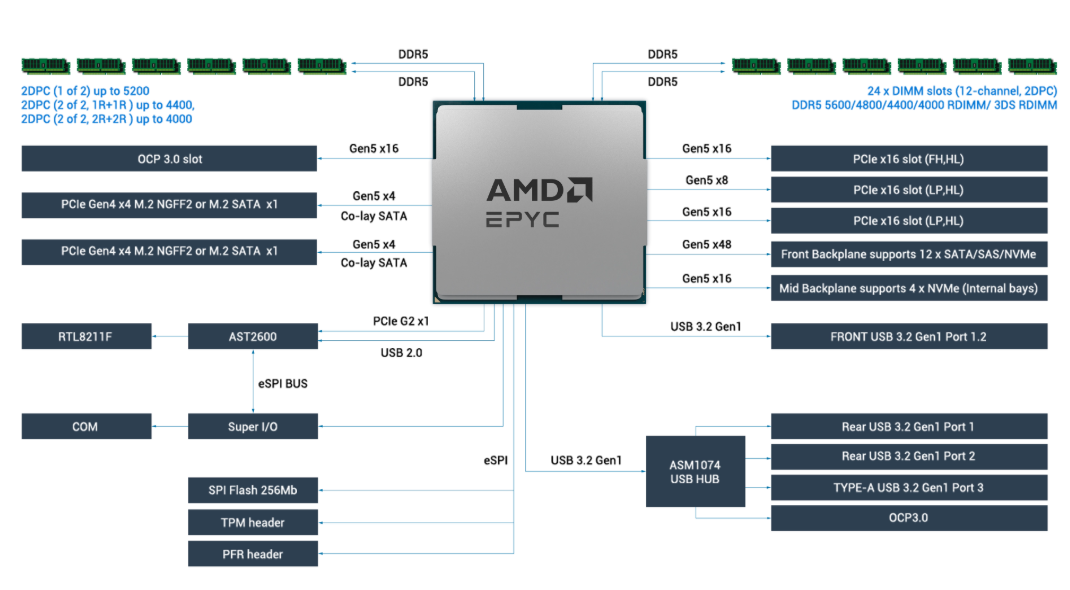

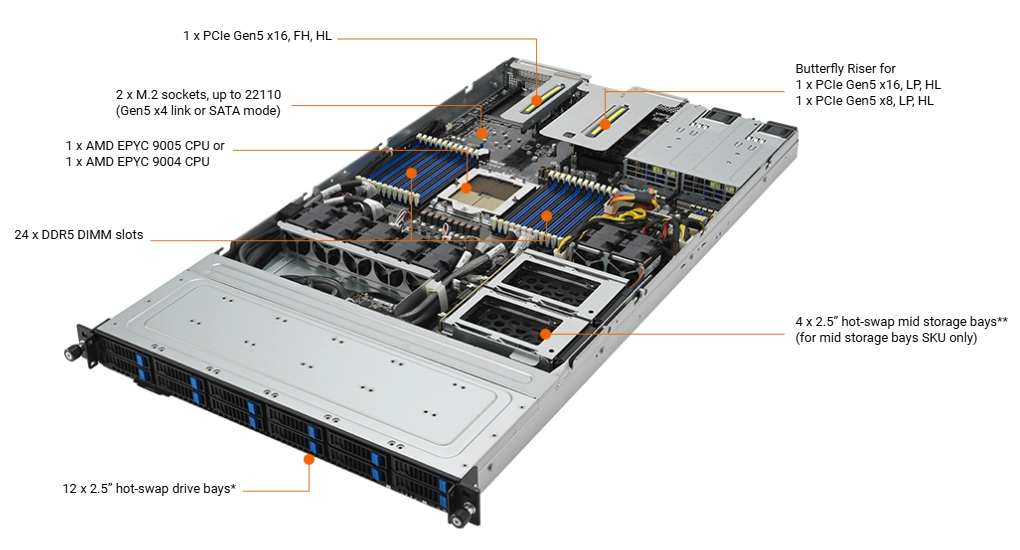

- Single AMD EPYC™ 9005 or AMD EPYC™ 9004 series processor support, Socket SP5
- Up to 24 DDR5 DIMMs (12-channel, 2 DIMMs per channel), supporting up to ≈ 3 TB memory capacity (dependant on RDIMM/3DS configuration)
- Storage: Up to 12 x 2.5″ hot-swap SATA/SAS/NVMe drive bays and optional mid-bay 4 extra drives; 2 x M.2 slots (Gen5 x4 or SATA)
- Expansion: 3 x PCIe 5.0 slots + 1 x OCP 3.0 mezzanine slot (Gen5) for networking/accelerators
- Networking: Dual onboard 1 GbE (Intel I350-AM2) plus dedicated management LAN (BMC AST2600)
- Advanced IT and remote management via ASUS ASMB11-iKVM and ASUS Control Center software
- Air-cooling with enhanced-volume EVAC heatsink for high-TDP CPUs
- Support for up to two single-slot GPUs for accelerated workloads (config-dependent)
- Front and rear I/O includes USB 3.2 Gen1, VGA, LAN, dedicated management port, and status LEDs
- 1U rack form factor with optional redundant 1200 W/1600 W 80 PLUS Platinum/Titanium power supplies
Request a quote today
Share your email below to express your interest, and a Nextron representative will reach out shortly with detailed information and a personalized quote for your selected product.
More Specifications
- CPU Manufacturer AMD
- Total Drives Supported 12
- Dimensions 43.85 mm Height
- Dimensions 449 mm Width
- Dimensions 842.5 mm Depth
- Manufacturer ASUS
- Motherboard Model
- Product Model RS501A-E12-RS12U
- DIMM Type RDIMM
