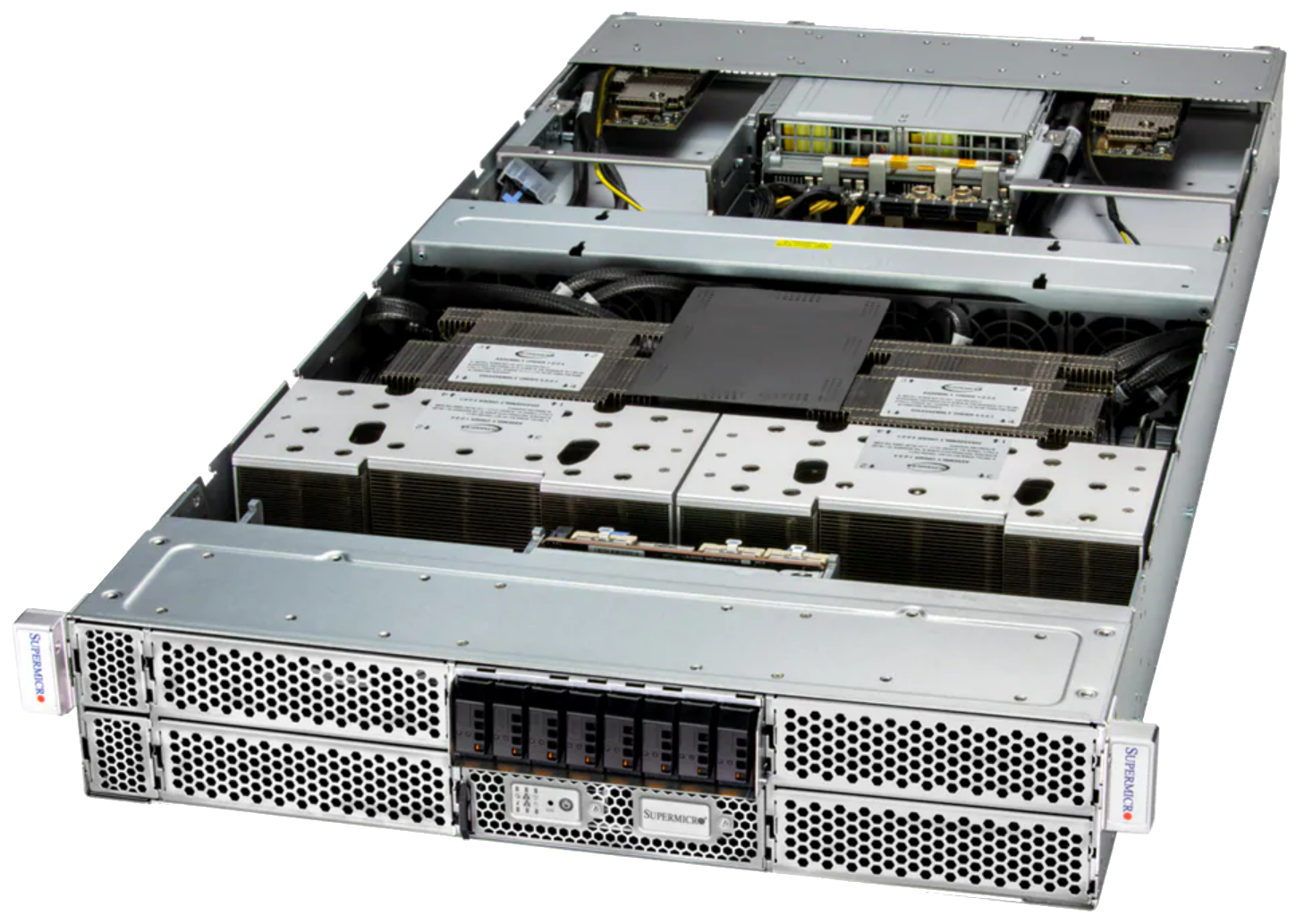

GPU ARS-221GL-NHIR
- Form Factor 2U Rackmount
- Supported CPU NVIDIA GH200
- CPU Socket 1
-
Max Supported Memory
960 GB DDR5 ECC Supported

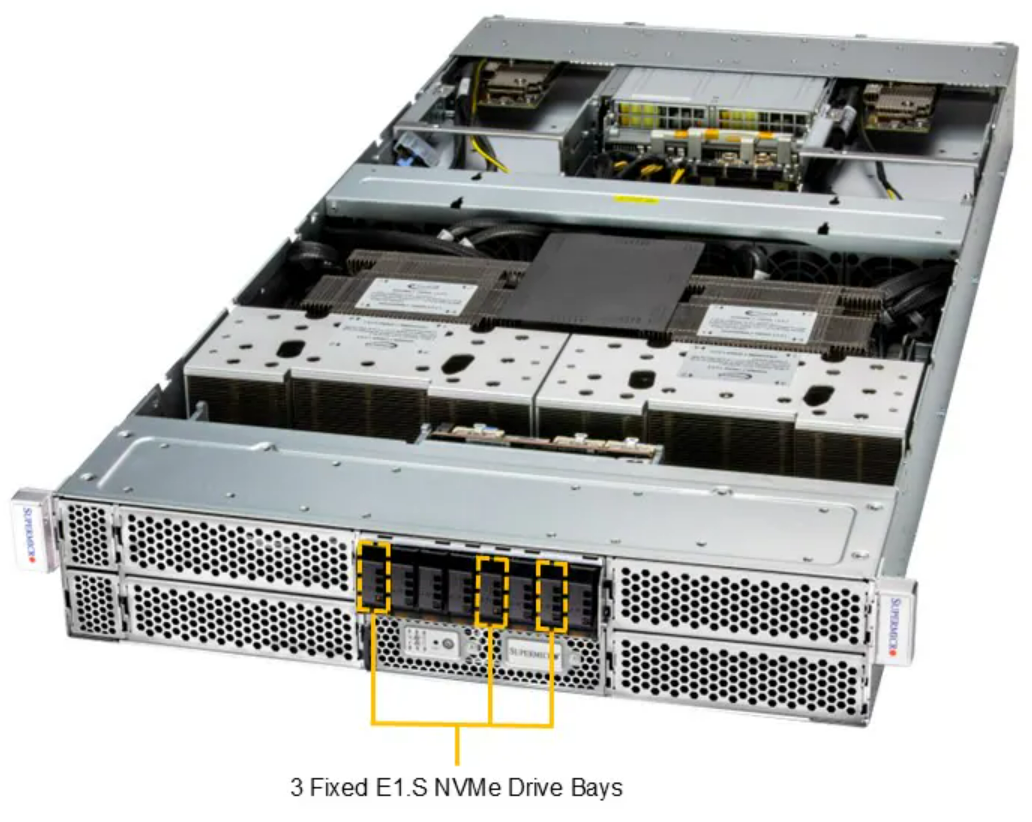

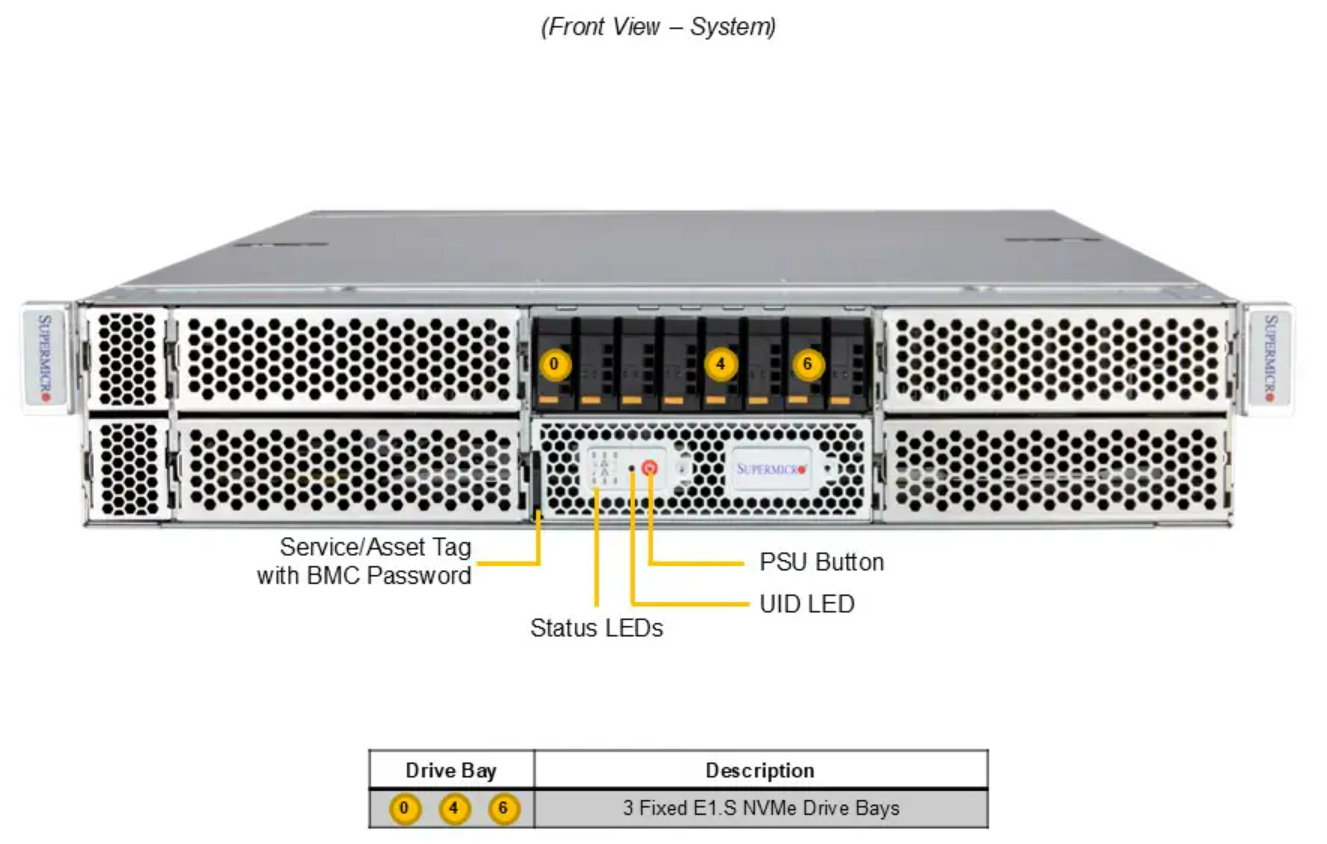

- Drive Bays 3 Fixed E1.S NVMe
-
Power Supply

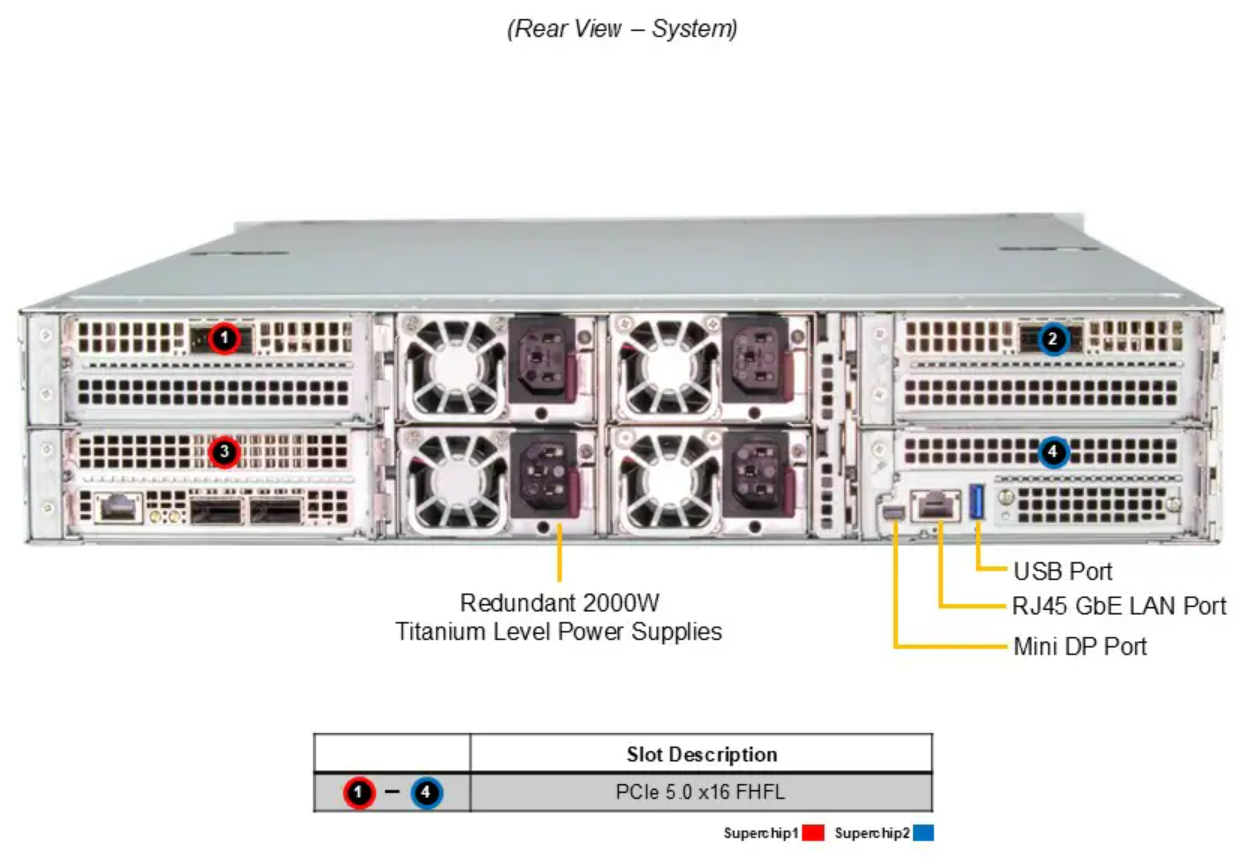

2000 W Titanium Redundant
Key Applications
- High Performance Computing
- AI / Deep Learning Training and Inference
- Large Language Model (LLM) and Generative AI
Key Features
- High-density 2U 1-node GPU system with two integrated NVIDIA H100 GPUs and two 72-core Arm Neoverse V2 CPUs
- NVIDIA® NVLink® high-speed interconnect between both GH200 Superchips
- NVIDIA Grace™ Hopper Superchip (Grace CPU and H100 GPU)
- NVLink® Chip-2-Chip (C2C) high-bandwidth, low-latency interconnect between CPU and GPU at 900 GB/s
- Up to 1248 GB of coherent memory (system as a whole), including 960 GB LPDDR5X and 288 GB of HBM3e for LLM applications
- 4 × PCIe 5.0 ×16 supporting one NVIDIA BlueField-3 and two ConnectX-7 cards

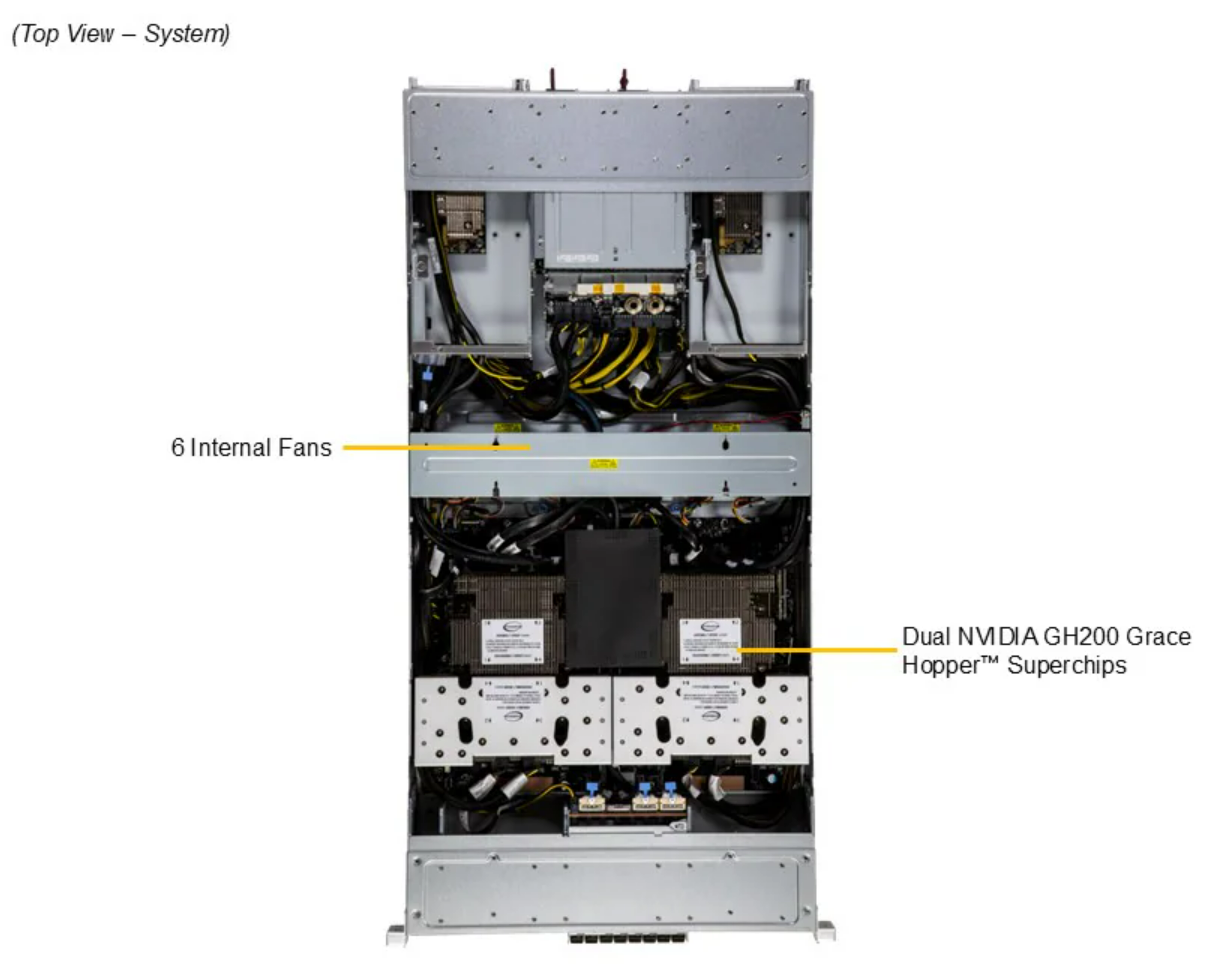

- 6 heavy-duty fans with optional speed control
Request a quote today
Share your email below to express your interest, and a Nextron representative will reach out shortly with detailed information and a personalized quote for your selected product.
More Specifications
- Configurable Configurable by Request
- Cores up to 72
- TDP 300 W
- M.2 2 NVMe M.2 slot
- PCI-e Default: 3 PCIe 5.0 x16 (in x16) FHFL slots
- Dimensions 17.26" (438.4 mm) Width
- Dimensions 3.43" (87 mm) Height
- Dimensions 35.4" (900 mm) Depth
- Product Model ARS-221GL-NHIR
- LAN 1 RJ45 1 GbE
- NVMe 3 E1.s NVMe
- USB 1 ports(rear)
- Video Output 1 mini-DP
- DIMM Type LPDDR5X
- Chipset System on Chip
- On-board NVMe NVMe
- Operating Temperature 10°C ~ 35°C (50°F ~ 95°F)
