AI Training SuperServer SYS-822GA-NGR3
- Form Factor 8U Rackmount
- Supported CPUs AMD EPYC 9005
- Intel Xeon 6900 P-cores
- CPU Sockets 2
-
Max Supported Memory
6 TB DDR5 ECC Supported
- Drive Bays 12 Hot swap 2.5" Drive Bays
-
Power Supply
3000 W Titanium Redundant
Key Applications
- Industrial Automation
- Drug Discovery
- Climate and Weather Modeling
- Massive-scale AI Training
- LLM & Multi-modal LLMs
- Fraud Detection and Fintech
Key Features

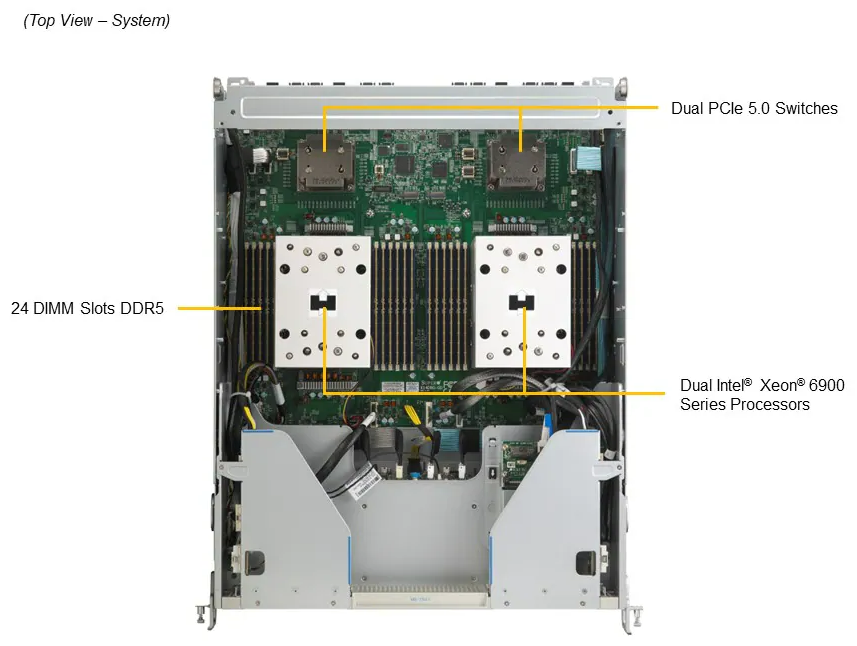

- Dual Intel® Xeon® 6900 series processors with P-cores
- Support for up to 24 DIMMs DDR5-6400 and 8800 MT/s MRDIMMs

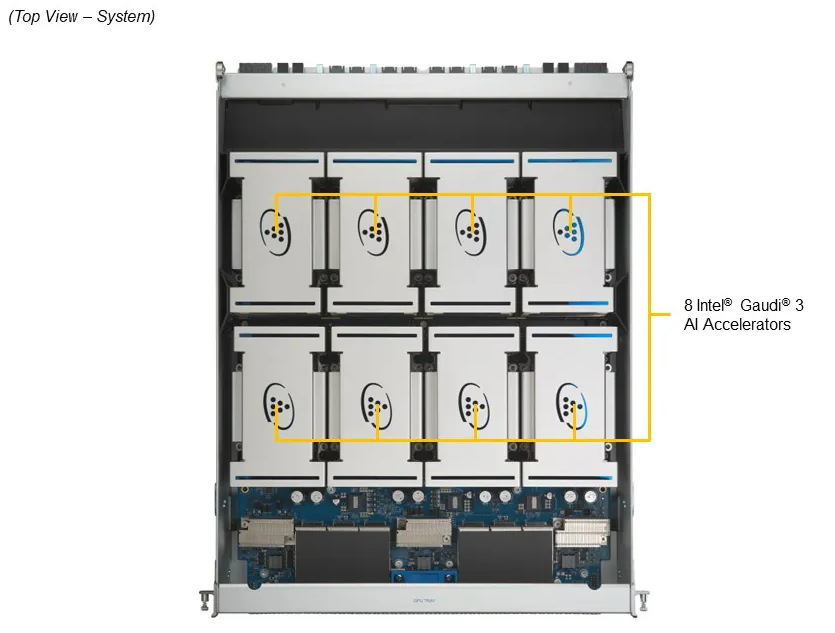

- Support for 8 Gaudi® 3 OAM GPUs

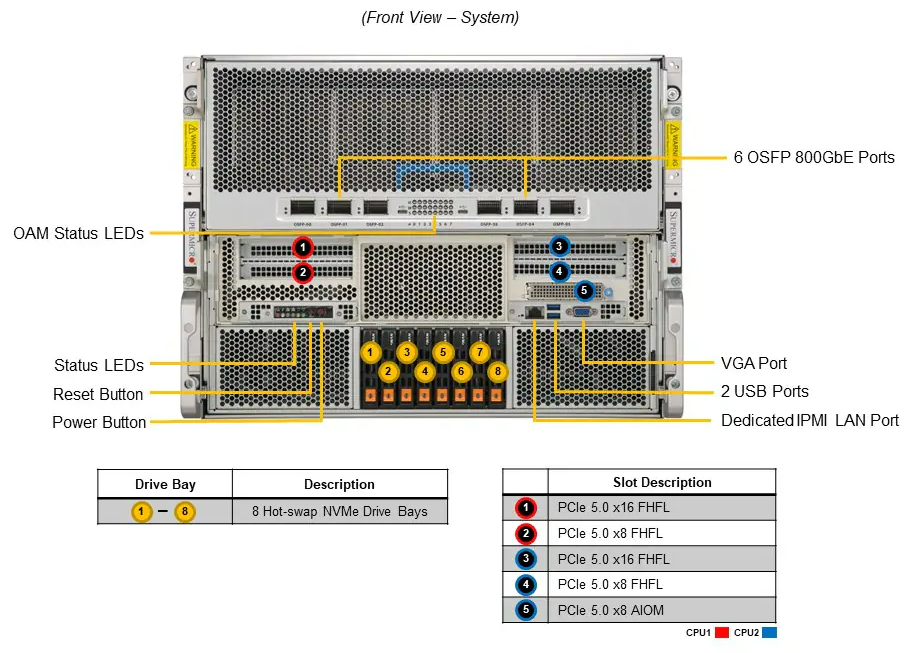

- 6 On-board OSFP 800GbE ports
- Up to 2 PCIe 5.0 ×16 FHFL and 2 PCIe 5.0 ×8 FHFL slots
- Default AIOM dual port 10GBase-T

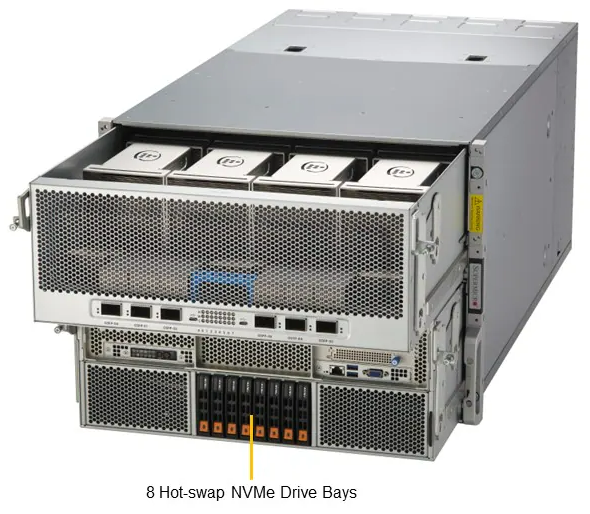

- Up to 8 × 2.5″ hot-swap NVMe Gen5 drive bays

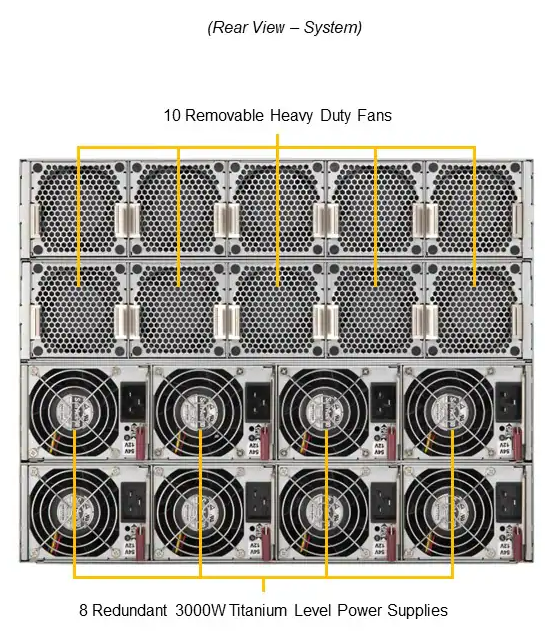

- 8 × 3000W (4+4) redundant Titanium level power supplies
Request a quote today
Share your email below to express your interest, and a Nextron representative will reach out shortly with detailed information and a personalized quote for your selected product.
More Specifications
- Configurable Configurable by Request
- Cores up to 128
- TDP 500 W
- M.2 2 NVMe M.2 slot
- PCI-e Default: 2 PCIe 5.0 x16 FHHL slots
- Dimensions 13.8" (356 mm) Height
- Dimensions 17.6" (447 mm) Width
- Dimensions 33.2" (800 mm) Depth
- Product Model SYS-822GA-NGR3
- LAN 6 OSFP 800GbE
- NVMe 8 NVMe
- USB 2 ports(rear)
- Video Output 1 VGA
- DIMM Type MRDIMM
- Chipset System on Chip
- On-board NVMe NVMe
- Operating Temperature 10°C ~ 35°C (50°F ~ 95°F)
